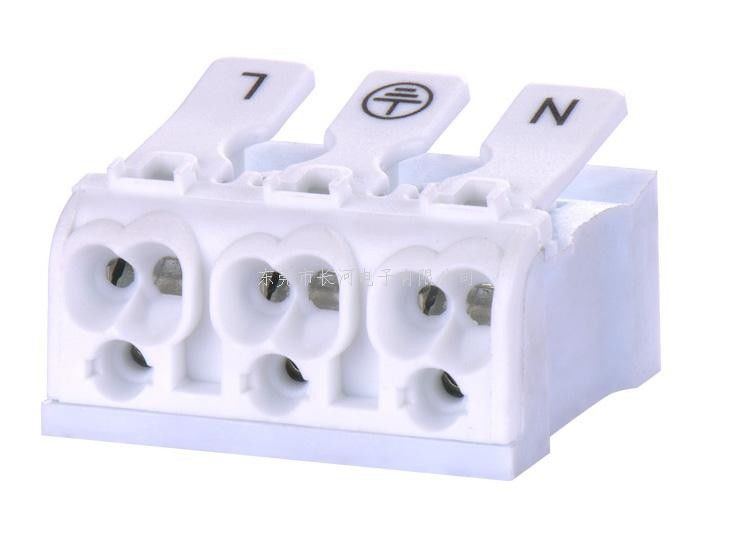

Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light
  • Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light
  • Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light
  • Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light
  • Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light

Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light

Place of Origin China
Brand Name Alinta
Certification CQC, CE, CB, CE, TUV
Model Number CS350-16/16D/16J/16Z
Product Details
Conductor:
Brass, Tin Plated
Case:
PA66, UL94V-0
Wiring Orientation:
Horizontal
Pitch:
10.0mm
Wire Size:
20-14AWG
Color:
White
Highlight:

Pitch 10mm Screwless Terminal Block

,

Pitch 10mm screwless connector block

,

Emergency Light Screwless Terminal Block

Payment & Shipping Terms
Minimum Order Quantity
1000
Price
Negotiable
Packaging Details
Tape & Reel
Delivery Time
2 ~3wks
Payment Terms
T/T
Supply Ability
25kk
Product Description




Product Description:

CS Series - "Screwless Terminal Blocks"  - Quick Wire Termination



Screwless Pressing Button Type Terminal Blocks, also known as screwless terminal blocks or push-in terminal blocks, are electrical connectors commonly used for connecting wires or cables. Unlike traditional terminal blocks that require tightening screws to secure the wires in place, screwless terminal blocks feature a spring-loaded mechanism.

How the screwless terminal blocks typically work:

Insertion: To connect a wire, you simply insert it into the terminal block slot. The spring-loaded mechanism automatically presses down on the wire to establish a secure connection.



Retention: Once the wire is inserted, the spring-loaded mechanism holds it firmly in place, ensuring good electrical contact.



Release: When you need to remove the wire, you usually press a release button or lever on the terminal block, which releases the spring tension and allows the wire to be easily removed.



Screwless pressing buckle terminal blocks offer several advantages, including quick and easy wire insertion without the need for tools, reliable connections, and a reduced risk of over-tightening or damaging the wires. They are commonly used in various electrical applications, including industrial control panels, building automation systems, and consumer electronics.





Product Overview


Alinta's Screwless Pressing Buckle Type Terminal Block facilitate simple wire insertion without the need for tools. Wires can be inserted directly into the terminal block, and a button is pressed for wire removal. These terminal blocks are suitable for use with single-core cables, multi-core cables, and other wiring applications. They are commonly employed in communications systems, lighting systems, security systems, and more. Available in various pitches including 3.5mm, 3.81mm, 5.0mm, 5.08mm, 7.5mm, 7.62mm, and 10.0mm, our terminal blocks are designed for versatility. Additionally, most of our screwless terminal blocks are splice objects. All of our products come with UL, CQC, CB, and CE certifications, ensuring high-quality standards and compliance with safety regulations







Features & Benefits:



  • Simple wire insertion without tools assistance
  • Pressing button when wire is removed
  • Applicable to singlecore cables, multicore cables and other wiring
  • Maily used in communications systems, lighting systems, securtiy systems
  • Pitch 3.5, 3.81, 5.0, 5.08, 7.5, 7.62 and 10.0mm
  • Most of the screwless terminal blocks are splice object
  • All products with UL, CQC, CB, CE certification







Application:

These terminal blocks are maily used in communications systems, lighting systems, securtiy systems.





CS350-16  Terminal Block Technical Parameters:





Material Info.
Case PA66,  UL94V-0
Conductor Brass, Tin plated
Spring SUS 301





Electrical Performance IEC UL
Wire Range 0.5 -1.5mm2 24-16AWG
Rated Voltage 320V 300V
Current Rating 15A 10A
Withstand Voltage 3000V/1min 1600V/1min
Operation Temperature -33°C~+105℃





Product Dimension





CS350-16



P=10.0mm   L=P*pole-0.20mm



  Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light 0

           Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light 1

CS350-16D









Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light 2

Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light 3

CS350-16J

Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light 4







Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light 5

CS350-16Z

Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light 6





Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light 7





Why choose us?




Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light 8


Our Terminal Block Connectors provide 100% brand new and high-quality solutions for all your electrical wiring harness needs.

With a termination style of screw or clamp, our connectors ensure secure and reliable connections for your systems.



1. Durability: Made from high-quality plastic and metal materials, these connectors can withstand harsh environments and ensure a long lifespan.



2. Easy Installation: With its compact size and versatile wire entry orientation, terminal Block Connectors can be easily installed in various applications.



3. Safety: These connectors provide a secure and stable electrical connection, reducing the risk of short circuits and other accidents.



4. Efficiency: Terminal Block Connectors allow for quick and hassle-free wire connections, saving time and effort in any application.





We provide terminal block connectors customization Service



At our company, we understand that every project has unique requirements. That's why we offer a comprehensive customization service for our Terminal Block Connectors .



Our team of experts will work closely with you to understand your specific needs and provide tailor-made solutions that meet your exact specifications.





Lab / Test Equipments

Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light 9



Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light 10





How to Order:



Pitch 10mm Screwless Terminal Block For Emergency Light And Tri-Proof Light 11






Contact Us Today!

Experience the difference with our customized Terminal Block Connectors. Reach out to us today for more information on our customization service. Let us empower your projects with precision-engineered solutions tailored to your exact specifications.
