Verticle Wiring PC Board-in Connector Provided with Housing and Terminal
  • Verticle Wiring PC Board-in Connector Provided with Housing and Terminal

Verticle Wiring PC Board-in Connector Provided with Housing and Terminal

Place of Origin China
Brand Name Alinta
Certification RoHS
Model Number Y2701 Series
Product Details
Product Name:
Board To Board Connector
Wire Entry Orientation:
Vertical
Current Rating:
0.7A AC/DC( AWG#26)
Voltage Rating:
50V AC/DC
Working Tempreature:
-25℃~85℃
Applicable PC Board Thickness:
0.6~1.2mm
Highlight:

Board To Board Connector

,

wire to board connector

,

PC Board-in Connector

Payment & Shipping Terms
Minimum Order Quantity
1000
Price
Negotiable
Packaging Details
Tape & Reel
Delivery Time
2~3 weeks
Supply Ability
25KK
Product Description

Alinta's PC board-in connectors pitches from 0.4mm to over 2.5mm. All of our connectors are made to the highest quality standards and we have obtained UL, ROHS, REACH, CE, ISO9001, ISO14001, and IATF 16949 certifications. The majority of wire-to-wire and board-to-board connectors we have shown on site were designed as replacements for brand connectors like Molex, JST, Te, Yeonho, Ket, etc.





Y2701 series are alternative of JST SZN. 1.5mm pitch.  It is widely use as P.C.BOARD-IN connectors.

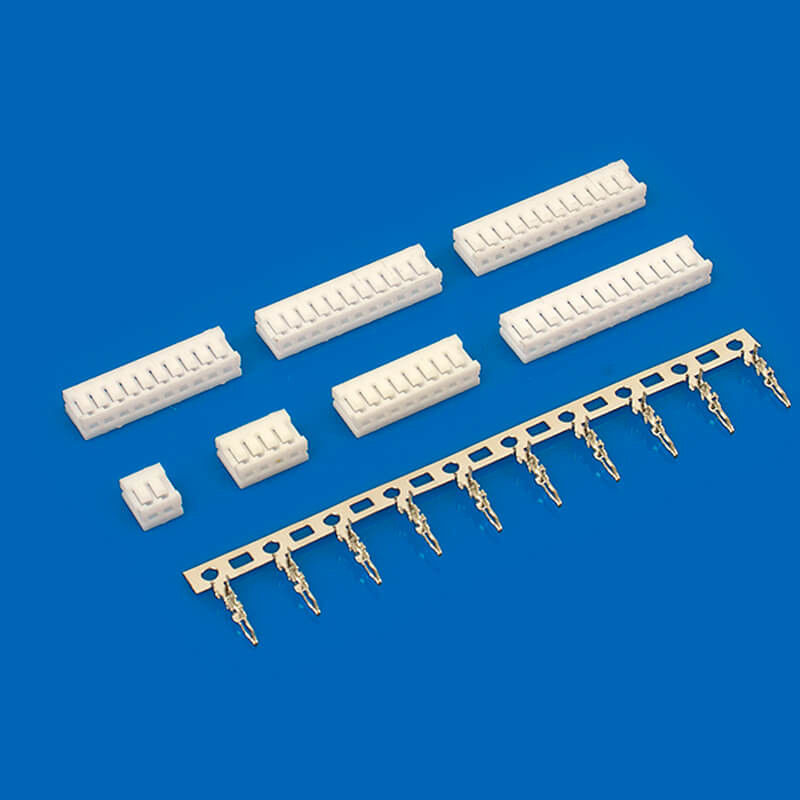

Image of Y2701 Series(Pitch 1.5mm PC Board-in Connecotor)



Verticle Wiring PC Board-in Connector Provided with Housing and Terminal 0









Specification



1. Poles: 2~20P

2. Current Rating: 0.7A AC,DC (AWG#26)

3. Voltage Rating: 50V AC, DC

4. Temperature Rating:~25℃~85℃

5. Insulation Resistance: ≥500mΩ

6. Withstanding Voltage: 500V AC/mintue

7. Applicable wire: AWG#30 to #26

8. Applicable PC board thickness: 0.6~1.2mm





Housing



Verticle Wiring PC Board-in Connector Provided with Housing and Terminal 1



Terminal



Verticle Wiring PC Board-in Connector Provided with Housing and Terminal 2
