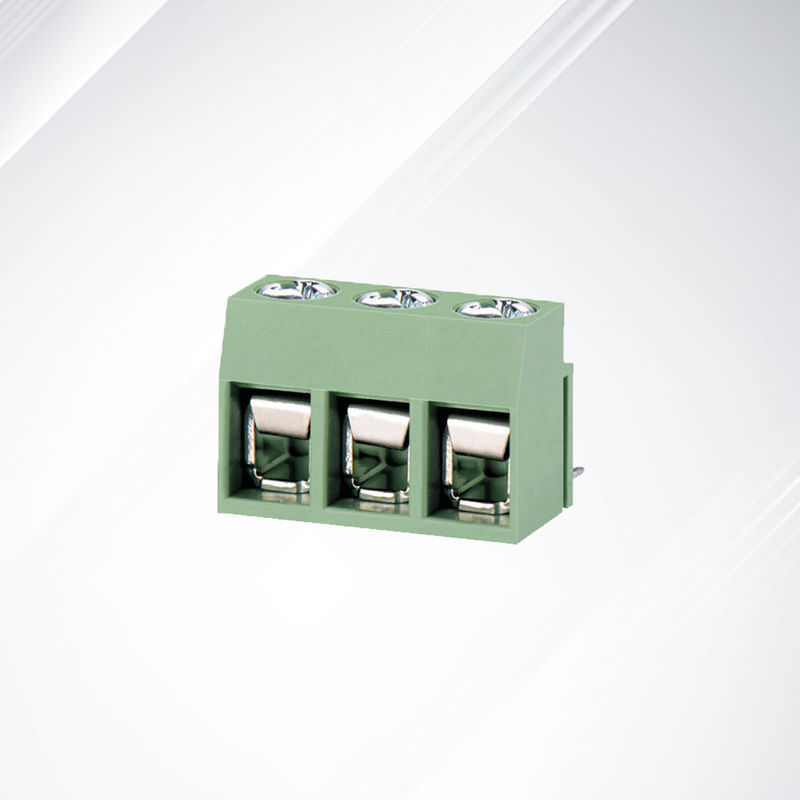

Secure Wiring 3P Circuit Board Screw Terminal 90° And 180° Wire Inlet Direction
  • Secure Wiring 3P Circuit Board Screw Terminal 90° And 180° Wire Inlet Direction
Secure Wiring 3P Circuit Board Screw Terminal 90° And 180° Wire Inlet Direction

Secure Wiring 3P Circuit Board Screw Terminal 90° And 180° Wire Inlet Direction

Place of Origin China
Brand Name Alinta
Certification UL, VDE, CQC,CB, CE
Model Number ACA series
Product Details
Highlight:

3P Circuit Board Screw Terminal

,

3P pcb mount terminal

,

secure wiring Circuit Board Screw Terminal

Payment & Shipping Terms
Minimum Order Quantity
1000
Packaging Details
Tape & Reel
Payment Terms
T/T
Product Description

ACA Series

Alinta Electronics' ACA series terminal block is a cost effective series with easy and secure wiring system. The pitch ranges from 3.5 to 10.0mm. It is widely used in the control system of  lighting, household appliances, elevactor and security system.  Customer's unquie design is warmly welcome.

Feature & Benefits:
  • Easy and secure wiring
  • Pitch:3.5, 3.81, 3.96, 5.0, 7.5, 10.0mm
  • 90° and 180° wire inlet direction
  • 2pin and 3pin combination base
  • Spliced as required or integrated version available
  • UL,VDE,CQC,CB, CE certification







Product Data



Material Info.
Case PA66 UL94 V-0
Conductor Brass, Tin plated
Screw C1018 steel, Zinc plated - M2.5
Spring SUS 301





Electrical Data
Item IEC UL
Wire Range 0.34 - 2.5 mm2 24-14 AWG
Rated Voltage 250V 300V
Current Rating 15A 10A
Withstand Voltage 2000V/1min 1600V/1min
Operation Temperature -33°C ~+105°C
