1.25mm Right Angle PCB Connector 2 To 25P Horizontal PCB WTB Connector

Product Descriptiom

A wire-to-board connector is a type of electrical connector used to connect wires to a printed circuit board (PCB). It consists of two main components: the housing and the contacts. The housing is usually mounted on the PCB and contains slots or receptacles where the contacts are inserted. The contacts are typically crimped onto the wires and then inserted into the housing, creating a secure electrical connection between the wires and the PCB.

These connectors are commonly used in various electronic devices and applications where it's necessary to connect wires to a circuit board, such as in computer peripherals, automotive electronics, industrial machinery, and consumer electronics. They come in different sizes, configurations, and specifications to accommodate various wire gauges, current ratings, and environmental conditions.

Alinta Wire-to-Board Connector Series

Discover reliable Wire-to-Board (WTB) connectors and cable assemblies from Alinta, offering pitch sizes ranging from 1.0mm to 6.35mm. Our connectors cater to diverse industries, including automotive, appliances, industrial, data & telecommunications, and consumer electronics.

Benefit from a wide array of advantages with our WTB connectors, making them an optimal choice for various applications. Enjoy the flexibility of customization options to tailor the connectors precisely to your requirements.

AL-X2201-R Horizontal Connection

Technical Parameter

Product Type Features	Category		Wire to Board
	Assembly Type		Wafer, Receptacle
	Pitch (mm)		1.25mm
	Product Series		AL-X2201-R
Electrical characteristics	Rated Voltage (V AC/DC)		125
	Rated Current (A AC/DC)		1
	Contact Resistance		≤20mΩ
	Insulation Resistance Withstand Voltage		≥100MΩ 500V AC/Minute
Configuration Features	Number of Rows		1
	Number of Positions		2~25
Shell characteristics	Color		White
	Housing Material Contact Material		LCP, UL94V-0 Brass, Sn-plated
Environmental Info	Operating Temperature Range (°C)		-20℃~85℃

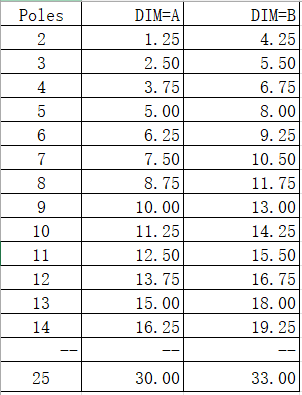

Dimension of Horizontal Type Wafer/Receptacle/PCB Connector

Housing Information

Terminal Information

For a dependable and customizable WTB connector solution, reach out to Alinta today! Let us assist you in finding the perfect solution for your needs.
